PM100CL1A060 600V 100A IPM 5th-Gen CSTBT™ Low VCE(sat) 1.75V Integrated Drive and Protection Chip Temp Sensor Error Output UL Recognized for Drives and Servo
Features
-
600V collector-emitter voltage (VCES) with 100A collector current (IC) rating
-
5th generation Full-Gate CSTBT™ chip technology for low saturation voltage (1.75V typ.)
-
Built-in gate drive ICs with comprehensive protection: short circuit, over-temperature (chip surface detection), under-voltage
-
Error output signal available from all upper and lower arm protection circuits
-
2500Vrms isolation voltage for safe mounting
-
Monolithic gate drive and protection logic integrated
-
Compatible L-series package design with screw mounting
-
UL recognized for industrial safety standards
Applications
-
General purpose inverters and industrial motor drives
-
Servo drives and motion control systems
-
Uninterruptible Power Supplies (UPS)
-
Renewable energy systems (solar and wind power inverters)
-
HVAC systems and industrial automation
-
Welding equipment and power supplies
Description
The PM100CL1A060 is a 600V, 100A intelligent power module from Mitsubishi Electric's L-Series, featuring a three-phase IGBT inverter configuration with integrated gate drive and protection ICs in a flat-base type insulated package . It utilizes advanced 5th generation Full-Gate CSTBT™ chip technology for low loss operation and includes chip surface temperature detection for accurate over-temperature protection
INFORMATION

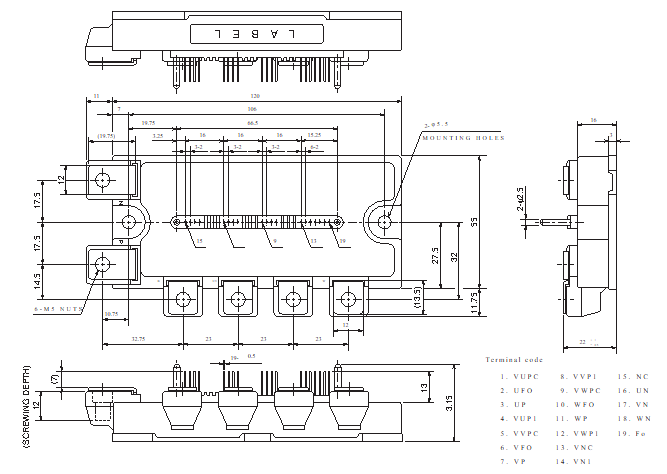

Drawing
